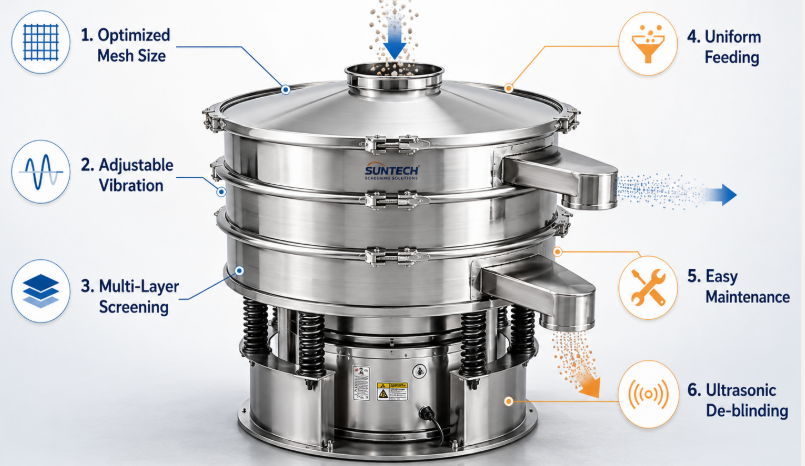

6 Ways to Increase Rotary Shaker Screen Output

To maximize the operational output of an industrial Rotary Vibrating Screen, plant operators must implement systematic optimizations across mechanical parameters and feed dynamics. Achieving peak volumetric throughput requires precise mesh size allocation, strategic adjustments of vibration frequency and multi-plane amplitude, utilization of multi-layered screen configurations, continuous volumetric feed stabilization, rigorous execution of ultrasonic screening integrations, and regularized mechanical maintenance schedules.

Table of Contents

• Select The Appropriate Mesh Size

• Adjust The Vibration Frequency And Amplitude

• Increase The Number Of Screen Layers

• Optimize Feed Quantity And Feeding Method

• Regularly Clean And Maintain The Screen

• Integrate Advanced Ultrasonic De-blinding Technology

Select The Appropriate Mesh Size

Selecting the appropriate mesh size involves balancing the screen open area ratio with the mechanical structural integrity of the wire cloth to guarantee rapid particle passage and prevent near-size particle accumulation.

In the engineering analysis of an industrial Rotary Vibrating Screen, the throughput velocity is directly proportional to the total open area percentage of the screen cloth. When processing dense industrial materials or chemical powders, selecting a mesh based solely on nominal separation cut-points often results in suboptimal flow rates. Engineers must evaluate the wire diameter alongside the aperture size. A smaller wire diameter expands the total net open area, allowing a higher volume of material to pass per unit of time, though it simultaneously reduces the absolute mechanical lifespan of the screen fabric under continuous fatigue loads.

The interaction between particle size distribution and screen aperture constitutes a core variable in material processing physics. Near-size particles, defined as those measuring between 0.85 and 1.15 times the aperture dimension, present a severe risk of lodging within the openings. This phenomenon restricts the available separation area and causes a linear decline in volumetric output. By utilizing an engineered mesh with rectangular apertures or specialized elongated openings, the passing probability for irregular particles increases significantly, mitigating blinding and boosting the aggregate output of the industrial screening assembly.

European processing facilities frequently request custom-woven high-tensile stainless steel mesh patterns that optimize the aperture-to-wire ratio. Our engineering department designs these systems with specialized mesh tensions that match the physical properties of the target material, whether dealing with high-density mineral aggregates or delicate food ingredients. By aligning the mesh parameters with the specific material dynamics, the overall processing efficiency rises, allowing the machine to sustain high-volume processing without incurring premature mechanical failure.

Technical Specifications for Mesh Optimization

Performance Advantages of Optimized Mesh Allocation

1. Minimization of near-size particle entrapment, thereby maintaining consistent open area configurations across extended production runs.

2. Reduction in back-pressure over the screening surface, allowing uniform material bed thickness across the entire diameter of the Rotary Vibrating Screen.

3. Enhanced mechanical resonance transfer between the drive motor and the screen cloth, reducing energy losses from material dampening effects.

Adjust The Vibration Frequency And Amplitude

Adjusting the vibration frequency and amplitude requires manipulating the upper and lower eccentric weights of the vibratory motor to optimize material retention time and acceleration forces across the deck surface.

The mechanical driving force of a professional Rotary Vibrating Screen depends heavily on the configuration of the eccentric weights mounted to the shaft of the vertical vibration motor. The upper eccentric weight generates horizontal orbital motion, which drives material from the central feed point outward toward the periphery. The lower eccentric weight imparts a vertical tipping motion, which determines the vertical acceleration and fluidizes the material bed. Modulating the phase angle between these two weights alters the spiral travel path of the material, directly regulating its overall retention time on the screening deck.

To maximize output, the material must form a thin, highly fluidized bed that covers the maximum possible surface area of the screen without stalling or gathering along the discharge perimeter. Increasing the vibration amplitude via additional eccentric weight weight-blocks enhances the vertical impact force. This added force dislodges stuck particles and breaks down surface adhesion in damp or cohesive materials. However, excessive amplitude can cause particles to bounce excessively, decreasing their probability of passing through the screen openings and increasing structural stress on the motor bearings and screen frame housing.

Actual customer evaluations show that European processing plants favor variable frequency drives (VFD) coupled with heavy-duty dual-weight motor configurations. This specialized configuration allows operators to fine-tune the motor speeds from 1440 RPM to 2900 RPM to accommodate shifting material properties. Our equipment features an adjustable lead angle system, typically calibrated between 15 and 45 degrees, which provides precise control over material travel velocity and ensures predictable separation paths across a wide range of industrial applications.

Vibration Mechanism Parameter Matrix

Structural Components of the Drive System

• Vertical Vibratory Motor: Custom engineered with dual shaft extensions to support heavy eccentric weight blocks.

• Adjustable Eccentric Mass Blocks: Segmented steel weights calibrated for precise incremental additions to horizontal and vertical force vectors.

• Heavy-Duty Compression Isolation Springs: High-fatigue steel coils designed to absorb non-functional lateral stresses and isolate the base frame.

Increase The Number Of Screen Layers

Increasing the number of screen layers multiplies the active separation surface area within a single machine footprint, allowing multi-fraction grading and boosting total volumetric output.

When factory floor space is limited, adding extra screening decks within a single Rotary Vibrating Screen assembly provides an effective method for scaling up overall output. Multi-deck configurations separate feed material into distinct size fractions simultaneously, removing the need for serial standalone screening systems. In a triple-deck or quadruple-deck layout, material transitions through progressively finer mesh apertures from the top deck to the bottom base, distributing the structural load across multiple levels and preventing any single screen cloth from becoming overloaded.

The mechanical design of multi-layer systems requires careful balance of weight distribution and structural rigidity. As additional screening rings and clamp rings are added to the vertical assembly, the center of gravity shifts upward, changing the mechanical response of the isolation springs. To maintain consistent vibration transfer to the lower decks, engineers must adjust the eccentric weight masses to offset the increased structural load. Without these adjustments, the lower decks may exhibit reduced acceleration forces, leading to material accumulation, bed thickening, and an eventual decline in overall separation quality.

Our industrial multi-deck models are built with reinforced quick-lock clamp rings and high-strength intermediate frames to ensure complete sealing and maintain structural alignment under heavy loads. This structural approach prevents cross-contamination between product fractions, a common design limitation in low-cost alternatives. European engineering standards focus heavily on structural stability and modular frame construction, which allows operators to quickly adapt or reconfigure screen decks as production needs shift over time.

Multi-Deck Component Specifications

Operational Classifications for Multi-Layer Systems

1. Coarse Scalping Level: Top-tier deck handles high mass flows, protecting finer lower meshes from heavy particle wear.

2. Intermediate Sizing Level: Middle decks handle precise particle distributions, maintaining narrow size tolerances for industrial applications.

3. Fines Classification Level: Bottom deck isolates ultra-fine dusts, utilizing dedicated anti-blinding devices to maintain steady material passage.

Optimize Feed Quantity And Feeding Method

Optimizing feed quantity and feeding method requires implementing automated volumetric metering devices to establish continuous, centralized, and uniform material distribution across the screening surface.

Uncontrolled mass-flow surges represent a primary cause of mechanical inefficiency and screen blinding in industrial operations. When bulk materials are dumped unevenly into a Rotary Vibrating Screen, the material bed thickens rapidly over the central inlet point. This accumulation dampens the mechanical vibrations of the screen cloth, preventing particles from contacting the mesh openings. For optimal separation efficiency, the material layer should not exceed a thickness equivalent to three to four times the aperture size, ensuring that every particle can interact effectively with the screen openings.

Implementing a centralized, uniform feeding system allows incoming material to disperse evenly across 360 degrees immediately upon contact with the screening deck. This approach maximizes the use of the available active screening area and prevents premature wear on localized sections of the wire cloth. Utilizing external auxiliary equipment, such as rotary valves, vibrating pan feeders, or specialized buffer hoppers, helps dampen upstream flow variations, ensuring a steady, predictable material stream that matches the processing capacity of the machine.

Our equipment designs include an integrated central distribution cone located directly below the feed inlet. This component converts vertical material impact into smooth radial flow, reducing mechanical strain on the delicate wire mesh. This distribution system is particularly critical when integrating high-capacity systems, such as the impurity removal food industry ultrasonic rotary vibrating screen separator, where establishing a controlled, consistent feed pattern is essential for maintaining strict purity standards and preventing screen overloading.

Feed Mechanism Optimization Metrics

Key Elements for Feed Stream Regulation

• Central Distribution Cone: Diverts vertical material streams into radial paths to optimize screen deck utilization.

• Adjustable Buffer Gate: Regulates material velocity at the machine inlet to prevent high-velocity impacts from damaging the mesh.

• Automated Load Sensor Array: Tracks material weight across the deck and dynamically adjusts feeder speeds to maximize throughput.

Regularly Clean And Maintain The Screen

Regularly cleaning and maintaining the screen requires strict enforcement of preventive maintenance schedules to replace worn gaskets, check screen tension, and clear clogged apertures.

The mechanical efficiency of an industrial Rotary Vibrating Screen depends heavily on maintaining proper structural tension across the wire cloth. Over extended operational cycles, continuous material impact and structural vibration cause the screen mesh to stretch and sag. This loss of tension dampens the acoustic and mechanical energy transferred from the vibratory motor, slowing material movement and lowering overall separation efficiency. Weekly inspections are critical to verify that the mesh remains securely bonded to its support ring and that the tensioning mechanism is locked tightly in place.

In addition to monitoring mesh tension, maintaining reliable sealing integrity across all intermediate frame interfaces is essential for consistent operation. Worn or damaged silicone or EPDM gaskets can allow fine particles to bypass the screen openings, leading to out-of-specification product and potential cross-contamination. Implementing a structured maintenance program that includes checking clamp ring torque, inspecting isolation springs for micro-fractures, and verifying motor terminal connections helps prevent unexpected mechanical breakdowns and ensures long-term operational reliability.

For applications involving hard-to-screen materials, incorporating dedicated anti-blinding devices like bouncing balls or slider rings directly beneath the screen fabric provides continuous, mechanical aperture clearing. These devices bounce against the underside of the mesh during operation, dislodging stuck particles and keeping the open area clear. This maintenance setup is particularly valuable when processing dense materials like calcium carbonate powders on systems like the calcium carbonate powder ultrasonic rotary vibrating sieve, where continuous anti-blinding action is necessary to maintain high production rates.

Preventive Maintenance Task Matrix

Integrate Advanced Ultrasonic De-blinding Technology

Integrating advanced ultrasonic de-blinding technology introduces high-frequency acoustic waves directly into the screen mesh to break surface tension and eliminate blinding when processing ultrafine powders.

Standard mechanical anti-blinding systems, such as bouncing rubber balls or slider discs, often struggle when processing ultrafine materials below 200 mesh. These fine powders are highly prone to agglomeration, electrostatic charging, and moisture-induced surface adhesion, which can blind the screen apertures within minutes of startup. Integrating an advanced ultrasonic control system solves this problem by converting electrical energy into high-frequency, low-amplitude mechanical vibrations that keep the screen surface continuously clear.

The ultrasonic system consists of an external digital generator, a piezo-electric transducer, and a specialized resonant distribution ring welded directly to the screen frame. The generator emits high-frequency electrical oscillations (typically between 30 kHz and 36 kHz), which the transducer converts into microscopic acoustic waves. These waves travel uniformly across the entire surface of the wire mesh, generating continuous high-frequency pulses that reduce friction between the material particles and the screen wires, allowing fine powders to pass through quickly.

This technology is highly effective for demanding separation tasks, such as those found in food processing and industrial chemical production. Systems equipped with this technology, like our high-performance ultrasonic rotary vibrating screen separator units, deliver up to ten times the throughput of traditional mechanical separators when handling fine materials. European pharmaceutical and advanced materials manufacturers heavily favor these integrated ultrasonic designs because they provide precise separation cuts and eliminate mesh wear caused by aggressive mechanical cleaning methods.

Ultrasonic Component Specification Architecture

Operational Benefits of Acoustic De-blinding Configurations

1. Complete elimination of screen blinding from electrostatic charges, moisture adhesion, or complex irregular particle shapes.

2. Maintains stable open area ratios throughout long production runs, ensuring predictable and repeatable processing results.

3. Reduces physical wear on fine-mesh screens by eliminating the need for aggressive mechanical cleaning discs or rubber balls.

Summary

Optimizing the processing capacity and output of an industrial Rotary Vibrating Screen requires a systematic approach that balances mechanical settings with material handling methods. By selecting the correct mesh parameters, optimizing motor weights, and utilizing multi-deck configurations, plants can significantly increase material throughput. Implementing automated volumetric feeders ensures uniform screen utilization and prevents bed-overloading, while strict preventive maintenance routines protect components from premature wear and keep the screen cloth running efficiently. For handling difficult, ultrafine, or cohesive powders, integrating advanced ultrasonic de-blinding systems offers a highly reliable solution, maintaining clear screen apertures and maximizing production output under demanding industrial conditions.
