Bucket Elevator Maintenance Checklist

The maintenance of material handling equipment is the backbone of industrial operational continuity. Among the various mechanical systems used in heavy industries, the bucket elevator stands out as a critical component for vertical transport. In sectors like construction, mining, and chemical processing, a Cement Bucket Elevator must operate under grueling conditions, handling abrasive materials and high temperatures. Without a structured maintenance framework, these machines are prone to catastrophic failures that can halt entire production lines.

A comprehensive Bucket Elevator Maintenance Checklist includes rigorous inspection of structural integrity, precise adjustment of belt tension and alignment, monitoring of drive motor thermal and electrical performance, evaluation of pulley and bearing wear, systematic cleaning of buckets and casings, and disciplined lubrication of all moving parts. Implementing this proactive strategy ensures that your equipment operates at maximum capacity while minimizing the risk of unplanned downtime and extending the service life of critical components.

Developing a deep understanding of these maintenance requirements is not just about repair—it is about optimization. In the following sections, we will delve into the technical nuances of each maintenance pillar, providing actionable insights for plant managers and technicians. This guide is designed to serve as a definitive resource for maintaining high-performance vertical conveying systems.

Summary of Maintenance Sections

Inspecting Bucket Elevator Integrity

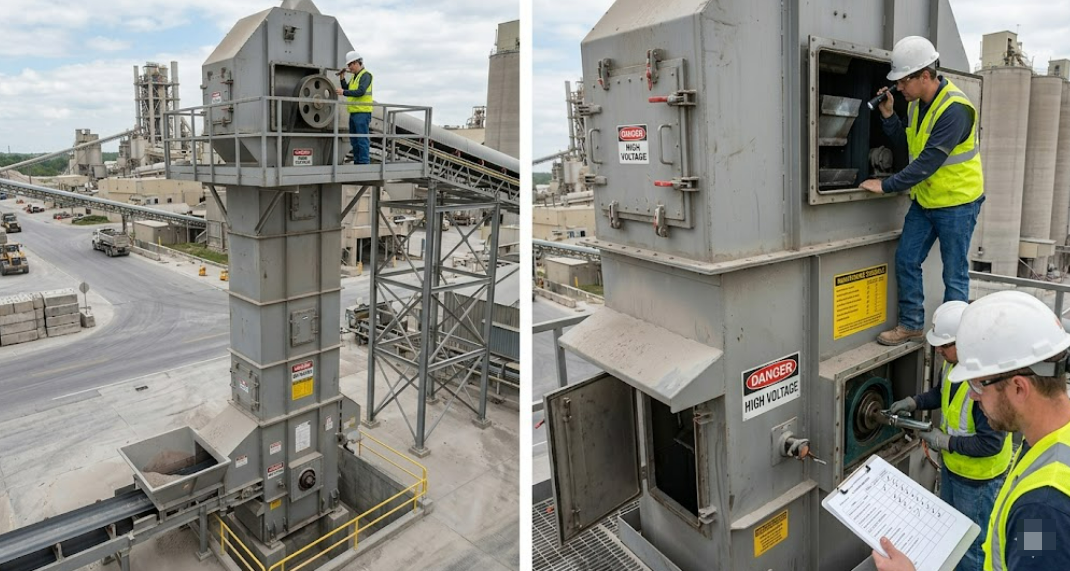

Inspecting the structural integrity of a bucket elevator involves a systematic examination of the exterior casing, inspection hatches, and structural supports to identify signs of corrosion, mechanical deformation, or seal failure.

The structural housing of a Cement Bucket Elevator serves as the primary containment for both the material being lifted and the dust generated during the process. In cement plants, the abrasive nature of the dust can lead to "hot spots" or localized thinning of the steel plates. Technicians must check for pinholes or cracks, particularly near the intake and discharge chutes where material impact is highest. If the casing integrity is compromised, it leads to material loss and creates a hazardous working environment due to airborne particulates.

Furthermore, the integrity check must extend to the foundation and the vertical alignment of the elevator tower. Over time, vibrations or thermal expansion can cause the structure to lean slightly, which introduces eccentric loading on the internal components. Checking the tightness of flange bolts and the condition of gaskets at each section joint is vital. Leaking joints not only waste product but can also allow moisture to enter the system, which causes cement to hydrate and harden inside the casing, leading to severe blockages.

Lastly, internal wear liners should be inspected during scheduled shutdowns. These liners are designed to take the brunt of the material impact. In a high-quality bucket elevator, these liners are replaceable. Neglecting to replace a worn liner will eventually result in the material wearing through the main structural casing. A detailed inspection report should categorize wear levels as "Minor," "Monitor," or "Immediate Action Required" to help prioritize maintenance budgets and manpower.

Checking Belt Tension and Alignment

Proper belt tension and alignment are achieved by calibrating the take-up system to ensure the belt runs centered on the pulleys with just enough tension to prevent slippage under full load conditions.

Belt slippage is one of the most common causes of heat generation and fire hazards in vertical conveyors. When a Cement Bucket Elevator is under-tensioned, the head pulley may spin against the belt without moving it, creating friction that can melt or ignite the belt material. Conversely, over-tensioning places excessive radial loads on the head and boot bearings, leading to premature bearing failure. The tension must be measured using the take-up screws or hydraulic tensioning devices, ensuring that both sides of the belt are adjusted equally to keep the shaft horizontal.

Alignment, or tracking, is equally critical. A belt that drifts to one side will cause the buckets to strike the side of the casing, leading to "clatter" and potential sparks. Over time, the edges of the belt will fray, and the buckets may become detached. Tracking should be checked at the head, boot, and any intermediate points where inspection windows are available. If the belt consistently tracks to one side, it may indicate that the head or boot shaft is not level, or that the belt splice was not performed squarely.

To maintain optimal performance, consider the following alignment factors:

1. Pulley Lagging Condition: Worn or uneven lagging on the head pulley can cause the belt to track incorrectly.

2. Material Loading: Uneven feeding into the boot can push the belt to one side.

3. Splice Integrity: A crooked mechanical splice or a poorly vulcanized joint will create a "dog-leg" in the belt, making it impossible to track perfectly.

   Regularly verifying these elements ensures the vertical conveying system remains stable and efficient.

Monitoring Drive Motor Performance

Monitoring the drive motor involves tracking current draw, operating temperatures, and vibration levels to identify electrical inefficiencies or mechanical resistance before they lead to motor failure.

The drive assembly is the heart of the elevator. For a Cement Bucket Elevator, the motor must handle high starting torques, especially if the system is started under load. Maintenance teams should use thermal imaging cameras to check for "hot spots" on the motor housing and the gearbox. An unusually high temperature often points to an internal winding issue, poor ventilation, or an overloaded system. Additionally, measuring the amperage (current draw) during operation and comparing it to the motor's nameplate rating can reveal if the elevator is working harder than intended due to internal friction or material overfilling.

The gearbox, which reduces the motor's high speed to the required torque for the elevator, requires its own set of checks. Oil levels must be monitored, and oil samples should be sent for laboratory analysis to check for metal shavings or contaminants. Excessive noise or vibration coming from the drive train is a precursor to gear tooth failure or bearing collapse. Using a vibration analyzer can help pinpoint whether the issue lies in the motor bearings, the high-speed coupling, or the internal gearbox components.

Furthermore, the coupling between the motor and the gearbox, as well as between the gearbox and the head shaft, must be inspected for wear. Flexible couplings can perish over time due to heat and ozone exposure. If the coupling fails, the power transmission stops instantly, often causing the backstop (anti-runback device) to engage violently. Maintaining the drive motor and its associated transmission components is essential for the reliable operation of any industrial vertical lift.

Evaluating Pulley and Bearing Condition

Evaluating the condition of pulleys and bearings requires a combination of visual inspection, acoustic monitoring, and physical measurement to ensure all rotating parts move smoothly without excessive play or heat.

Pulleys in a Cement Bucket Elevator are subject to significant wear from the abrasive cement dust that invariably finds its way between the belt and the pulley surface. The head pulley lagging—usually rubber or ceramic—should be checked for bald spots or lifting. If the lagging is worn, the coefficient of friction drops, leading to the belt slippage issues mentioned previously. The boot pulley, often a wing-type design to allow material to fall away, must be checked for bent wings or material buildup that could cause the belt to jump or vibrate.

Bearings are the most frequent point of mechanical failure in elevator systems. Since they are often located in dusty environments, the seals must be checked for integrity. A "purging" technique is often used where grease is added until clean grease exits the seal, pushing out contaminants. However, if a bearing begins to emit a high-pitched squeal or a low-frequency rumble, it indicates that the raceways or balls are damaged. Using ultrasonic leak and friction detectors can identify these sounds long before they are audible to the human ear.

Key metrics for bearing and pulley health include:

• Operating Temperature: Should not exceed 180°F (82°C) for standard bearings.

• Vibration Velocity: Monitoring changes in mm/s to detect imbalance.

• Shaft Alignment: Ensuring the head and tail shafts are perfectly parallel.

  High-quality bulk material elevators often utilize heavy-duty spherical roller bearings to handle the high radial loads common in cement applications.

Cleaning Buckets and Casing Regularly

Cleaning the buckets and casing is the process of removing residual material and hardened buildup to maintain the design capacity of the elevator and prevent mechanical interference.

In the cement industry, moisture is the enemy of the Cement Bucket Elevator. Even a small amount of humidity can cause cement dust to "set" inside the buckets. This reduces the effective volume of each bucket, meaning the elevator has to run longer or faster to move the same amount of material, which wastes energy. Furthermore, hardened material adds significant "dead weight" to the belt, increasing the tension and the load on the motor. During a maintenance shutdown, each bucket should be inspected, and any significant buildup should be mechanically removed.

The boot section of the elevator is the most common site for material accumulation. If the "out-feed" is slower than the "in-feed," the boot can fill up, a condition known as "digging." This puts immense stress on the buckets and the belt. Modern elevators often feature clean-out doors in the boot to allow for easy removal of spilled material. Regularly clearing these areas prevents the material from being ground into a fine powder or hardening into blocks that can damage the buckets as they pass through the bottom of the stroke.

Moreover, the interior of the head section (the discharge area) must be kept clean. If material builds up on the discharge tongue or the chute, it can cause "back-legging." Back-legging occurs when the material fails to exit the discharge chute and instead falls back down the "return leg" of the elevator. This creates a continuous loop of recirculating material that increases wear and can eventually jam the system. A clean cement handling elevator is a productive one.

Lubrication of Moving Parts Essential

Essential lubrication involves the disciplined application of the correct grade of grease or oil to bearings, chains, and gearboxes at specific intervals to minimize friction and heat.

Lubrication is not just about adding grease; it is about "precision lubrication." For a Cement Bucket Elevator, the environment is extremely dusty, meaning the lubricant can easily become an abrasive paste if it is contaminated. Technicians must clean the grease zerk before attaching the grease gun to prevent pushing dirt into the bearing. For high-temperature applications, synthetic greases are often preferred as they maintain their viscosity better than mineral-based alternatives.

The frequency of lubrication is determined by the operating hours and the severity of the environment. Many modern plants are moving toward automated lubrication systems. These systems deliver small, frequent doses of grease to the bearings while the elevator is running, which is far more effective than a large volume of grease once a month. This constant positive pressure helps to keep dust out of the bearing housing.

A lubrication schedule should include:

• Head and Boot Bearings: Monthly or via auto-lube.

• Gearbox Oil Change: Annually or based on oil analysis results.

• Drive Chain (if applicable): Weekly lubrication to prevent link stiffening.

  Using the right products in your material lift system significantly reduces the Total Cost of Ownership (TCO) by preventing premature component replacement.

Safety Systems Review Critical

A critical safety systems review involves testing all emergency stop circuits, belt misalignment sensors, underspeed switches, and backstop mechanisms to ensure they protect the machine and personnel during a fault.

Safety is paramount when dealing with heavy vertical machinery. The Cement Bucket Elevator must be equipped with an underspeed switch, typically mounted on the boot shaft. If the belt slips or the motor stalls, the switch detects the drop in RPM and shuts down the motor before the friction causes a fire. Testing this switch by simulating a slowdown is a mandatory part of any maintenance checklist. Similarly, belt misalignment sensors (touch probes or ultrasonic sensors) must be checked to ensure they trigger an alarm if the belt begins to drift.

The backstop, or holdback, is a critical safety device that prevents the elevator from running backward under the weight of the material if the power fails. A backward-running elevator can lead to a massive "pile-up" in the boot and can be extremely dangerous for anyone performing maintenance. The backstop should be checked for proper engagement and to ensure it isn't "dragging" during normal operation, which can cause excessive heat.

Finally, all physical guards around the drive assembly and the intake points must be inspected. They should be securely fastened and free of damage. Emergency stop pull-cords that run the length of the elevator (if accessible) or are located at the head and boot must be tested to ensure the control circuit breaks immediately. Investing in the safety of your heavy-duty elevator is not just a regulatory requirement; it is a fundamental aspect of operational excellence.
