Bucket Elevators for Cement Handling

A cement bucket elevator is the most reliable solution for vertical transport in cement production, offering a compact footprint and high-capacity throughput for abrasive materials. By utilizing heavy-duty chains or high-strength belts, these systems ensure that bulk materials are moved efficiently from grinding mills to storage silos or packaging lines with minimal spillage and maximum uptime.

Understanding the nuances of vertical conveyance is critical for plant managers and engineers looking to improve operational efficiency. This guide explores how advanced material handling technology addresses the specific challenges of the cement sector, from handling hot clinker to managing fine powder flow. We will delve into the technical specifications, advantages, and custom configurations that make these machines indispensable in modern cement manufacturing facilities.

Table of Contents

1. Upgrading the Cement Handling Process

2. The Advantages of Custom Bucket Elevators

3. Heavy-Duty Bucket Elevators from Materials Handling Equipment

4. Custom Solutions for Cement Handling

Upgrading the Cement Handling Process

Upgrading your facility with a modern cement bucket elevator streamlines production by providing a stable, high-speed vertical lift that reduces energy consumption and footprint compared to inclined conveyors.

In the early stages of cement manufacturing, many plants relied on long, inclined belt conveyors or rudimentary mechanical lifts. While functional, these systems often required massive amounts of floor space and were prone to significant dust emissions. As environmental regulations tighten and land costs rise, the industry has shifted toward vertical integration. A high-quality Cement Bucket Elevator provides a localized solution that moves materials straight up, allowing for a more compact and logical plant layout.

The upgrade process involves replacing aging, inefficient equipment with units designed for higher throughput. Modern elevators are engineered to handle the specific "fluid" nature of cement powder and the "lumpy" nature of clinker. By implementing advanced drive systems and wear-resistant liners, plants can achieve a much lower cost-per-ton of material moved. This transition is not just about moving material; it is about controlling the flow to prevent surges that can disrupt downstream processes like kilns or separators.

Furthermore, safety and environmental compliance are major drivers for upgrades. Modern vertical transport systems are completely enclosed, significantly reducing fugitive dust. This creates a safer working environment and prevents the loss of valuable finished product. When integrated with sophisticated monitoring sensors, these systems provide real-time data on belt tension and bearing temperatures, allowing for predictive maintenance rather than reactive repairs.

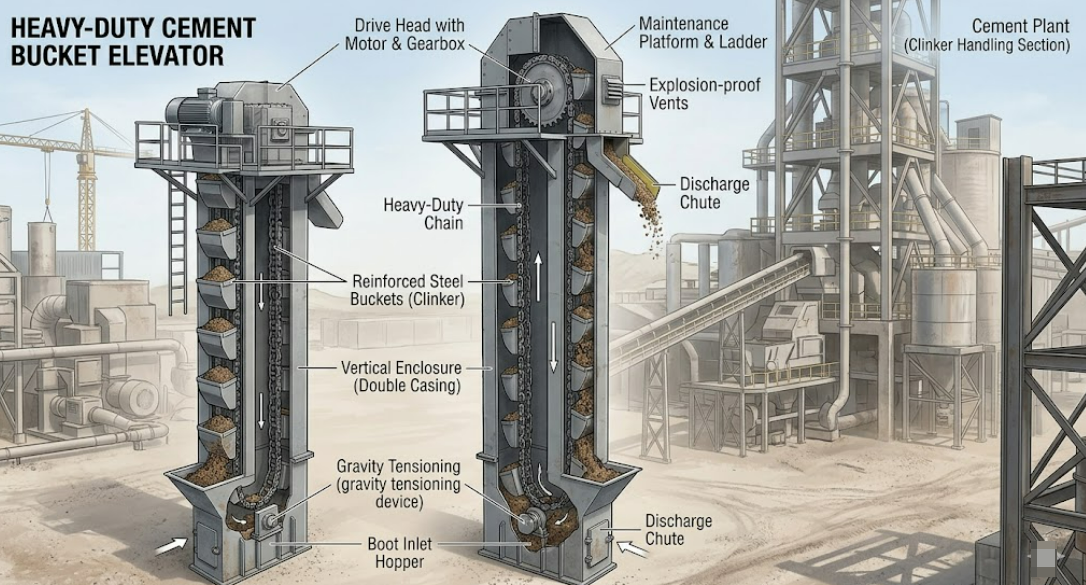

Key Components of Modern Vertical Systems

To understand the upgrade, one must look at the technical improvements in these machines:

1. Optimized Head Sections: Designed with centrifugal discharge geometry to ensure the material leaves the bucket cleanly at high speeds.

2. Reinforced Boot Sections: Equipped with easy-access clean-out doors and heavy-duty take-up frames to maintain proper tension.

3. High-Strength Casing: Thicker steel walls and reinforced flanges to prevent structural fatigue under heavy loads.

The Advantages of Custom Bucket Elevators

Custom bucket elevators offer superior durability and operational precision by matching the machine’s metallurgy and drive specifications to the exact chemical and physical properties of the cement being handled.

Off-the-shelf solutions often fail in the cement industry because they do not account for the high temperatures of clinker or the extreme fineness of finished cement. A custom bucket elevator is designed with specific liners, such as Hardox or ceramic tiles, in high-impact zones. This targeted reinforcement ensures that the machine does not wear through prematurely, which is a common issue when handling raw limestone or silica-rich additives.

Beyond durability, customization allows for precise capacity matching. If an elevator is too small, it becomes a bottleneck; if it is too large, it wastes energy. Custom engineering ensures the bucket size, spacing, and belt speed are synchronized with the mill’s output. This synchronization minimizes the "back-legging" of material, where product falls back down the return side of the elevator, a common cause of inefficiency and mechanical failure in standard models.

Finally, custom units can be adapted to existing architectural constraints. Many cement plants have been expanded over decades, leading to tight spaces and awkward angles. Custom-designed elevators can be built with specific inlet heights, discharge trajectories, and motor orientations to fit into a pre-existing footprint without requiring expensive structural modifications to the building.

Comparison: Standard vs. Custom Elevators

Heavy-Duty Bucket Elevators from Materials Handling Equipment

Heavy-duty bucket elevators are characterized by their rugged construction, utilizing reinforced steel casings and specialized chain or belt reinforcements to move thousands of tons of material daily.

The core of a Cement Bucket Elevator lies in its internal lifting mechanism. For cement applications, this usually involves a high-tension, steel-cord belt or a heavy-duty forged chain. Steel-cord belts are preferred for high-lift applications because they offer minimal stretch and can withstand temperatures up to 200 degrees Celsius. The buckets are bolted securely to these belts using specialized recessed washers to prevent snagging on the pulleys.

The drive assembly is another area where heavy-duty specs are non-negotiable. Large cement elevators require high-torque motors coupled with fluid couplings or variable frequency drives (VFDs). This allows for a "soft start," which protects the belt and mechanical components from the massive inertia of a fully loaded elevator. Backstops are also integrated into the drive system to prevent the elevator from running backward in the event of a power failure, which could lead to catastrophic material accumulation in the boot.

Maintenance-friendly features are built into the very DNA of these heavy-duty machines. Large inspection doors are placed at the head, boot, and intermediate sections to allow for easy belt tracking and bucket replacement. By using high-grade bearings with remote lubrication points, operators can maintain the system while it is running, ensuring that the bucket elevator remains the most reliable link in the production chain.

Technical Specifications for Cement Applications

• Capacity Range: 50 to 1500 tons per hour.

• Lifting Height: Up to 80 meters or more.

• Bucket Material: Carbon steel, stainless steel, or reinforced nylon for specific non-stick needs.

• Drive Type: Right-angle gear motors with auxiliary drives for maintenance.

Custom Solutions for Cement Handling

Tailored solutions for cement handling involve integrating advanced sensors, specialized inlet chutes, and explosion-proof components to ensure safety and efficiency in volatile or high-load environments.

Every cement plant has unique challenges, such as moisture levels in raw materials or the need to handle additives like gypsum and fly ash. A specialized Cement Bucket Elevator can be equipped with gravity-fed or screw-fed inlets to ensure a consistent flow of material into the buckets. This prevents the "digging" effect in the boot, which can stress the motor and cause premature wear on the bucket lips.

Safety is paramount when handling fine powders that can become combustible or cause respiratory issues. Custom solutions include integrated dust extraction ports at the head and boot, which connect directly to the plant's baghouse system. Furthermore, belt misalignment switches and speed monitors are standard in custom builds, providing an automatic shut-off mechanism if the belt begins to drift or if a blockage is detected.

Finally, the environmental context of the plant—whether it is in a humid coastal region or a sub-zero mountain area—dictates the choice of exterior coatings and insulation. Custom-engineered elevators can be galvanized or coated with high-performance epoxy to prevent corrosion. In colder climates, heating elements can be added to the drive and take-up sections to prevent lubricants from thickening and ensuring the system starts reliably regardless of the weather.

Application Areas in Cement Production

1. Raw Meal Transport: Moving pulverized limestone to the preheater tower.

2. Clinker Handling: Vertical lift from the cooler to storage silos.

3. Finished Cement: Transporting the final product from the ball mill to the packing plant.

4. Alternative Fuels: Handling shredded tires or biomass used for kiln firing.
