Comparing Square Gyratory Screen vs. Circular Tumbler Screen: Which is Better?

When choosing between a Square Gyratory Screen and a Circular Tumbler Screen, the better option depends entirely on your floor space constraints and material shape. The square gyratory screen offers maximum processing capacity per square meter for large industrial plants, while the circular tumbler screen delivers superior, gentle multi-deck classification for fragile or low-density materials.

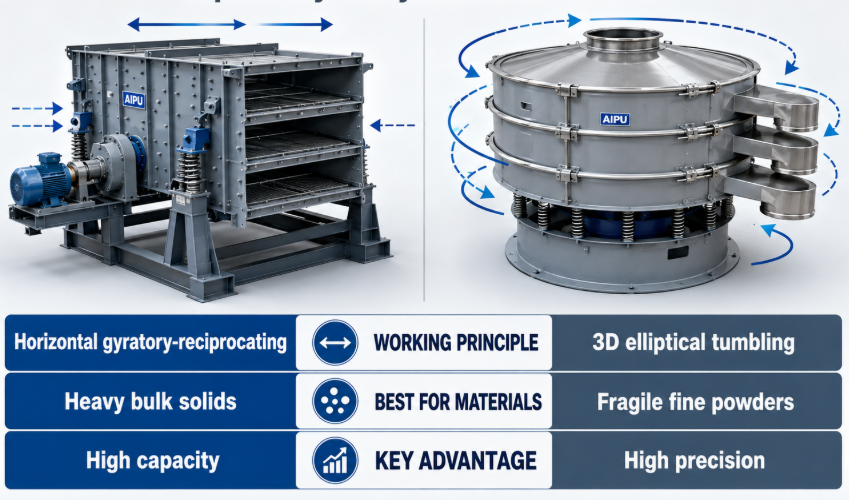

At a Glance

Differences In Working Principle

The fundamental difference in working principle lies in the motion trajectory, where the square gyratory screen utilizes a near-horizontal gyratory-reciprocating motion while the circular tumbler screen employs a three-dimensional elliptical tumbling motion that mimics manual hand sieving.

Square Gyratory Screen

The square gyratory industrial separator operates using a unique reciprocating motion that changes progressively throughout the length of the machine. It starts with a purely circular motion at the feed end, smoothly transitions into an elliptical path toward the center, and finally finishes as a straight-line reciprocating motion at the discharge end. This specialized drive mechanism keeps the material in constant contact with the mesh screen surface without causing high vertical bouncing.

By utilizing this distinctive drive setup, the material is rapidly spread across the entire width of the screening deck at the feed point. The low-angle horizontal drive ensures that particles slide across the mesh, which maximizes the opportunities for near-size particles to pass through the open areas. This motion is particularly effective for high-tonnage industrial applications where consistent output and minimal particle degradation are critical manufacturing requirements.

Circular Tumbler Screen

In contrast, the circular tumbler screen utilizes a three-dimensional acceleration profile that combines radial inclination and tangential tilt. This mechanical combination creates an elliptical movement pattern where particles move from the center of the mesh out to the outer periphery in a spiraling path. The internal counterweights allow operators to precisely adjust both the radial and tangential tilt to match specific material characteristics.

This gentle tumbling action ensures that fragile materials do not break during the screening cycle. The vertical acceleration remains low, meaning the material stays flat on the screen cloth rather than bouncing high into the air. This makes it an exceptional choice for fine, low-density, and highly abrasive powders that require extended dwell times to achieve proper classification.

Maintenance Tip: Drive Assembly Care: For high-capacity square screening systems, check the eccentric drive gear oil levels every 480 operating hours. For circular separators, ensure the upper and lower eccentric weight angles are calibrated symmetrically to prevent structural casing stress and uneven screen cloth wear.

Material Adaptability

Material adaptability depends heavily on bulk density and particle fragility, making the square configuration optimal for high-density heavy bulk solids and the circular format best suited for delicate light-weight engineering powders.

When evaluating a industrial vibrating screen for global manufacturing facilities, material behavior dictates the mechanical design. For high-volume production lines handling dense industrial compounds like fertilizer, quartz sand, petroleum coke, and salt, the square gyratory machine excels. Its structural layout handles thick material bed depths effortlessly without blinding the mesh screens. The horizontal movement forces heavy materials forward uniformly, ensuring steady material flow across multiple processing decks.

European engineering clients frequently request specialized separation setups for ultra-fine chemical powders and fragile agricultural seeds. For these sensitive industrial applications, a circular tumbler system is often preferred because it prevents grain fracture and maintains product integrity. When processing highly sticky or static-charged materials, the circular configuration can be easily retrofitted with mechanical ultrasonic de-blinding systems, bouncing balls, or motorized air knives to keep the screen openings clear.

To achieve high-efficiency sorting of industrial commodities like bulk soda ash, choosing the correct machine frame layout is essential. For large production volumes, processing plants often select the specialized High-Precision Soda-Ash Square Tumbler Vibrating Screen because its large rectangular screen deck provides an expansive screening surface area that handles massive tonnages while maintaining exceptional separation accuracy.

Screening Precision Consideration

Screening precision is determined by how long the material stays on the deck, where the circular tumbler provides longer dwell paths for precise fine grading, while the square gyratory provides rapid material stratification for ultra-high-volume processing.

Dwell Time and Stratification

Achieving high screening precision requires effective material stratification, where fine particles sink to the bottom of the material bed while coarser fractions rise to the top. The square gyratory separator achieves this rapidly at the feed end due to its wide circular motion. The material is thinned out across the deck instantly, allowing smaller particles to pass through the mesh early in the cycle, while the remaining near-size particles are evaluated along the elliptical and linear paths.

The circular tumbler machine handles precision differently by using an adjustable spiral path. By altering the eccentric weights, operators can extend the time material spends on the screen deck. This allows fine, difficult-to-separate particles multiple opportunities to pass through the mesh openings. This prolonged contact zone allows for highly accurate multi-deck classification, making it common to see these systems configured with up to five deck levels for precise particle size distribution.

For manufacturing operations that require standard multi-deck sorting without complex custom settings, utilizing a reliable Circular Vibrating Screen provides a dependable, space-saving solution. This mechanical configuration delivers consistent vertical and radial classification forces, ensuring balanced performance across standard industrial separation tasks.

Structural Footprint and Capacity Factors

When planning factory floor layouts, engineering teams must balance processing capacity against the physical space required by the equipment. Square gyratory separators have a larger rectangular footprint but offer massive volumetric capacity per unit of floor space. They are designed for heavy-duty industrial installations where continuous operation is mandatory.

Circular tumbler units have a compact, round footprint that fits easily into tight production spaces or stacked modular manufacturing lines. Their vertical design allows for efficient multi-stage sorting without taking up excess horizontal floor space, making them a popular choice for specialized chemical and pharmaceutical processing facilities.

Summary

Choosing between these two advanced industrial separation technologies comes down to your primary processing goals. If your manufacturing plant requires high-tonnage processing, rapid material stratification, and robust performance for heavy industrial bulk solids, the square gyratory separator is the ideal choice. Its unique horizontal motion profile delivers high throughput while protecting your building foundations from harsh structural vibrations.

Alternatively, if your processing application involves ultra-fine, delicate, or low-density powders that require high separation precision and custom dwell times, the circular tumbler separator provides the necessary gentle handling. Its adjustable three-dimensional movement path ensures thorough classification without damaging fragile materials. Selecting the right industrial vibrating screen layout ensures long-term processing efficiency, consistent product quality, and reliable, cost-effective operation for global manufacturing markets.
