Differences Between Linear Vibrating Screen and Rotary Vibrating Screen

The fundamental difference between a linear vibrating screen and a rotary vibrating screen lies in their mechanical trajectory, structural design, and operational kinematics: linear screens utilize dual synchronous motors rotating in opposite directions to generate linear force for high-capacity, heavy-duty, straight-line material classification (typically for coarse-to-medium dry materials), whereas rotary screens utilize a single vertical motor with eccentric weights to generate a three-dimensional gyration (horizontal, vertical, and inclined) designed for high-precision, multi-layered grading, and wet/dry separation of ultra-fine powders and delicate materials.

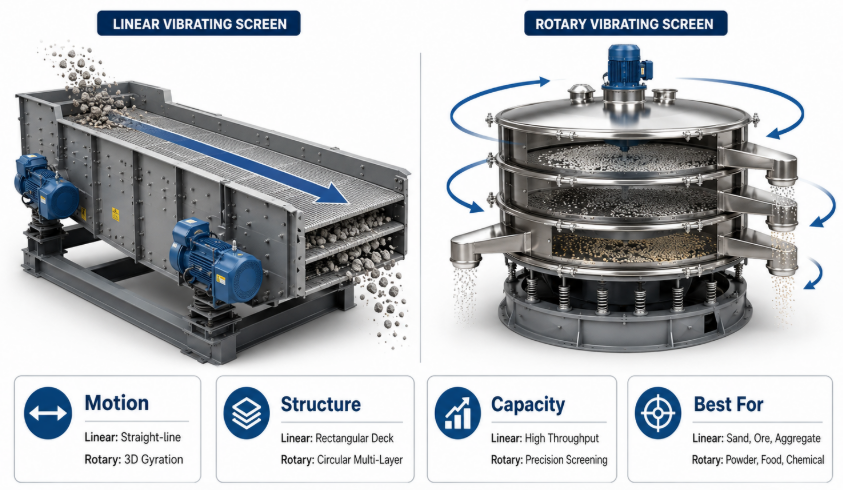

At a Glance

Kinematic Trajectory and Operating Principles

The primary kinematic distinction between these two systems resides in the force vector generation: a linear vibrating screen functions through linear force vectors produced by twin contra-rotating motors, whereas a rotary vibrating screen employs a single vertical vibration motor with adjustable eccentric weights to execute a complex three-dimensional motion.

To understand the mechanics of the linear vibrating screen, one must analyze the synchronization of its dual-motor drive system. When two identical vibration motors are installed parallel to each other and rotate in opposite directions, the centrifugal forces generated by their eccentric blocks cancel each other out in the direction parallel to the motor axis. Concurrently, these forces superimpose upon one another in the direction perpendicular to the motor shaft. This creates a powerful, unified resultant force vector. This force is transferred directly to the screen box at a specific angle, typically 30 to 45 degrees relative to the screen deck. As a result of this force vector, materials loaded onto the screen deck are thrown forward in a continuous parabolic, linear trajectory. The rapid upward and forward acceleration forces particles to repeatedly lift off the mesh surface, allowing smaller undersized particles to fall through the apertures while oversized materials travel straight to the discharge outlet. This process occurs with minimal retention time.

Conversely, the rotary vibrating screen utilizes a single vertical vibration motor equipped with eccentric weights at both its top and bottom shafts. The rotation of the motor converts this rotational kinetic energy into a combination of horizontal, vertical, and inclined three-dimensional motions. This multi-axis vibration is transmitted directly to the circular screen mesh. The material introduced at the center of the circular deck is forced to spiral outward in a continuous, complex motion path towards the periphery of the frame. By adjusting the phase angle of the eccentric weights on the upper and lower motor shafts, operators can modify the spatial trajectory of the material on the screen mesh. This allows them to prolong or shorten the material's retention time on the sieve surface depending on processing requirements. This three-dimensional motion prevents particles from blinding the mesh apertures and ensures that delicate, high-precision materials are graded uniformly.

From an engineering perspective, the choice of kinematic design reflects specific industrial needs. The linear vibrating screen is engineered primarily to move large masses of material across a horizontal plane rapidly. The rotary vibrating screen, however, is designed to maximize the exposure of every individual particle to the mesh apertures through three-dimensional spatial paths. This design priority makes the rotary unit highly effective for complex, high-precision applications, such as the high-efficiency ultrasonic rotary vibrating screen separator for impurity removal in the food industry, where preventing mesh blinding and ensuring strict hygiene are paramount.

Kinematic Parameter Comparison

Structural Design and Layout Options

The structural layouts of these units are fundamentally distinct: the linear vibrating screen features a rectangular, horizontally-inclined deck structure designed for linear flow, while the rotary vibrating screen utilizes a vertical, cylindrical multi-deck stack configuration designed to save floor space.

The structural framework of a linear vibrating screen is constructed using thick, heavy-duty rectangular side plates. These plates are joined by robust transverse beams that support a long, rectangular screen box. This screen box is supported by high-tensile steel or rubber compression springs, which isolate the heavy vibration forces from the surrounding structural steelwork. The rectangular configuration allows for a long screening path. This layout is ideal for integrating multiple screen mesh panels in series along the deck length. This configuration allows for sequential particle classification. This design is highly effective for processing abrasive industrial materials, such as aggregate or sand. For instance, the multi-layer silica sand linear vibrating sieve shaker demonstrates how multiple screen decks can be stacked vertically within a single rectangular frame to achieve multi-grade classification without expanding the unit's physical footprint.

In contrast, the rotary vibrating screen features a space-saving cylindrical column design. The unit consists of a base frame that houses the vertical vibration motor, supported by a circular arrangement of isolation springs. Above this base, multiple circular screen frames can be stacked vertically and secured with heavy-duty v-tension bands. Each circular deck features its own discharge outlet, which can be rotated 360 degrees to align with plant piping and downstream equipment. This modular, cylindrical design is exceptionally rigid and perfectly sealed. It is ideal for preventing dust emissions, retaining volatile solvents, or preventing external contaminants from entering the process. It is highly suitable for cleanrooms and confined processing plants.

When analyzing these structural configurations, European and North American engineers often focus on maintenance access and sealing efficiency. The rectangular linear vibrating screen requires ample overhead and longitudinal space for screen cloth replacement. However, it offers straightforward access to the drive motors. The circular rotary vibrating screen, on the other hand, allows for rapid mesh changes using quick-release clamp rings. This design minimizes downtime in multi-product processing plants. Furthermore, the completely enclosed circular design ensures compliance with strict environmental dust limits (such as ATEX or OSHA regulations) far more easily than large rectangular screens.

Structural Component Comparison

Screening Accuracy and Particle Size Range

Screening accuracy and particle size limits differ greatly: rotary vibrating screens are designed for high-precision separation of ultra-fine powders down to 500 mesh, while linear vibrating screens are optimized for rapid, high-volume classification of coarser particles ranging from 2 mm to 10 mm and above.

The high screening accuracy of the rotary vibrating screen is a direct result of its three-dimensional kinetic path. As fine particles spiral outward across the circular mesh, they experience a long retention time and a high probability of contacting the mesh apertures. The vertical vibration component keeps the material bed fluidized. This fluidization prevents fine particles from agglomerating and helps stratify the material, allowing smaller particles to quickly settle to the bottom of the bed and pass through the screen. For extremely fine, sticky, or electrostatically charged powders (such as pharmaceutical active ingredients, fine chemicals, or metal powders) that would easily blind standard screens, ultrasonic transducers can be integrated. These transducers apply high-frequency micro-vibrations to the mesh. This technology is highly effective in systems like the industrial food-grade ultrasonic rotary vibrating screen, which achieves reliable, high-precision classification of delicate starches, sugars, and food additives without damaging the material structure.

For the linear vibrating screen, the primary design objective is high-velocity processing rather than high-precision grading of fine powders. The intense linear force throws the material bed forward rapidly. While this ensures high throughput, it reduces the residence time of individual particles on the screen surface. This high speed increases the likelihood that a small percentage of near-size particles will bypass the apertures and discharge as oversize material. Consequently, linear screens are generally limited to processing mesh sizes coarser than 150 mesh (approximately 100 microns). For materials coarser than 100 microns, such as silica sand, coal, or minerals, the linear screen provides excellent separation efficiency. It handles high-velocity feeding without blinding, especially when using polyurethane screen panels or heavy-duty woven wire mesh with self-cleaning profiles.

European process engineers often prefer rotary screens for high-value chemical and food processes where strict particle size distributions are required. In these applications, even minor cross-contamination between grades can ruin a batch. On the other hand, heavy mining, metallurgical, and construction material operations rely on linear screens. These industries prioritize high processing speed and durable mechanical construction over fine-mesh grading precision.

Processing Capacity and Operational Scale

The processing capacities of these systems represent different operating scales: linear vibrating screens are engineered for high-volume, continuous industrial processing that can exceed hundreds of tons per hour, whereas rotary vibrating screens are suited for low-to-medium batch or continuous operations where precision is valued over raw volume.

The high-throughput capability of the linear vibrating screen stems from its mechanical design. Its long rectangular deck and dual-motor configuration can handle thick material beds and high static loads. Industrial linear screens can be manufactured in widths of up to 3 meters and lengths exceeding 8 meters. This expansive surface area allows the material to spread out into a thin, uniform bed. This bed stratification is highly effective for rapid water removal, slurry scalping, or high-volume dry grading. This robust structural design allows for the continuous feed of heavy materials, such as mined ores, gravel, or industrial chemicals, without risking structural deformation of the screen box or stalling the electric motors.

Conversely, the processing capacity of a rotary vibrating screen is mechanically limited by its circular geometry and the radial travel of the material. Because the material must travel from the center of the circular deck to the outer edge, the available screening area per unit of radius decreases towards the center. This geometry can lead to bottlenecks if the feed rate is too high. If a thick layer of material is dumped onto the center of a rotary screen, the vertical vibration cannot fluidize the material bed effectively. This can cause unscreened fine particles to slide over the outer edge with the oversize material. Therefore, rotary screens are typically used for processing capacities ranging from a few hundred kilograms to several tons per hour. They are ideal for in-line safety screening, polishing, and precise batch grading of high-value raw materials.

The design differences between these systems reflect their targeted industrial scales. For example, high-volume mineral washing, quarry sorting, and coal preparation plants rely on heavy-duty linear screens. These operations require continuous, 24/7 runtimes with maximum uptime. In contrast, powder handling facilities, packaging lines, and specialty chemical plants utilize rotary screens. These operations benefit from the rotary screen's compact footprint, lower power consumption, and ease of cleaning during product changeovers.

To illustrate the relationship between structural design, screen mesh size, and typical processing scales, the following table outlines the operational parameters of both technologies:

Operational Metric Comparison

Material Suitability and Industrial Applications

The distinct operating characteristics of linear and rotary screens make them suitable for different materials and industries: linear units are ideal for heavy, abrasive, and non-cohesive bulk solids, while rotary units excel at handling delicate, cohesive, wet, sticky, or electrostatically charged fine powders and liquid slurries.

Linear vibrating screens are widely used in heavy industries such as mining, metallurgy, coal preparation, and construction materials. Their robust design handles heavy bulk solids, including crushed granite, limestone, metallic ores, and industrial silica sand. For these demanding applications, the multi-deck silica sand linear vibrating screen shaker provides an excellent solution. It can separate dry silica sand into multiple precise fractions simultaneously, withstanding continuous mechanical impacts without structural fatigue. Additionally, linear screens are highly effective for dewatering slurries, coal wash-water, and industrial wastewater. In these processes, the linear motion rapidly drives liquids through the mesh while conveying the dry solids off the discharge lip.

Rotary vibrating screens are the preferred choice for the food, pharmaceutical, fine chemical, and plastics industries. Their gentle, three-dimensional motion classifies delicate materials without causing attrition or degradation of fragile granules. In food processing, where hygiene and preventing contamination are critical, fully enclosed stainless-steel rotary screens are standard. These units are used for scalping oversized clumps from flour, starch, milk powder, and spices. For challenging materials like cohesive starches or ultra-fine metal powders that block standard screens, ultrasonic vibrating screens provide a reliable solution. They prevent mesh blinding and maintain high-efficiency throughput during continuous operations.

These applications highlight the different engineering approaches for each screen type. The linear screen is designed for high-capacity, heavy-duty sorting where mechanical durability is the priority. The rotary screen is designed for high-precision, sanitary, and dust-free operations where protecting material integrity and achieving exact grading are the primary goals.

Working Principle and Motion Vector Control (Theme Highlight): The core of vibrating screen efficiency lies in matching the mechanical motion vector to the material's physical properties. For linear screens, the throw angle must be carefully aligned with the center of gravity of the screen box to prevent side-sway, which can cause uneven deck wear and reduce grading efficiency. For rotary screens, adjusting the phase angle between the upper and lower eccentric weights allows operators to customize the material flow path. A phase angle of 0 degrees drives material rapidly from the center to the periphery, which is ideal for high-volume scalping. Increasing the phase angle to 45 or 60 degrees creates a longer, spiraling path that keeps material on the screen deck longer. This adjustment improves screening accuracy for challenging materials but reduces overall throughput.

Equipment Maintenance and Screen Lifespan Optimization

Maintaining vibrating screens requires different approaches based on their design: linear screens require regular lubrication of their dual-drive exciter gears and inspection of heavy-duty isolation springs, while rotary screens focus on monitoring mesh tension and maintaining the rubber bounce balls or ultrasonic cleaning systems.

For linear vibrating screens, maintenance focuses on the high dynamic forces generated by the dual horizontal motors. Because these motors generate intense linear accelerations, all structural bolts—especially those securing the motor mounts and screen panels—must be checked regularly for tightness using a torque wrench. Loose bolts can lead to structural cracking of the side plates. Additionally, the lubrication of the motor bearings is critical. Operating under high vibration requires high-temperature, high-viscosity greases applied at precise intervals. The heavy-duty isolation springs must also be inspected for cracks, corrosion, or uneven sagging, which can cause the screen box to tilt and disrupt the linear material flow.

For rotary vibrating screens, maintenance is typically simpler but requires attention to detail regarding the screen mesh and sealing components. Because rotary screens often handle fine, high-value powders, maintaining proper mesh tension is crucial. Loose mesh can sag, which disrupts the three-dimensional spiral material path and leads to rapid fatigue wear along the tension ring. The self-cleaning system—whether using bouncing rubber balls, slider rings, or ultrasonic transducers—must be inspected regularly. Worn-out bouncing balls can lose their elasticity, leading to mesh blinding and reduced throughput. Furthermore, because these units are often used in dust-free or sanitary environments, the silicone or EPDM gaskets between the circular decks must be checked for wear to prevent product leakage or external contamination.

Understanding these maintenance requirements helps operations select the right equipment for their facility. Linear screens require rugged, systematic mechanical maintenance but offer long service lives under demanding conditions. Rotary screens require less heavy maintenance but demand careful attention to mesh tension and cleanroom-compliant sealing to maintain high-precision performance.

Maintenance Tips for Prolonging Screen Lifespan (Theme Highlight):

1. Weekly structural inspections: Check the tension of all clamping bolts and motor mounting fasteners on linear screens to prevent structural cracks caused by high dynamic forces.

2. Monitoring mesh tension: Ensure the circular screen cloth on rotary screens remains highly tensioned; any sagging will accelerate metal fatigue and cause premature mesh failure.

3. Gasket replacement intervals: Replace all silicone or EPDM sealing gaskets on rotary screens at the first sign of deformation to maintain a hermetic seal and prevent fine powder leakage.

4. Bearing lubrication schedules: Lubricate the bearings of linear screen vibration motors strictly according to the manufacturer's operational hours, using high-performance grease rated for high-vibration environments.
