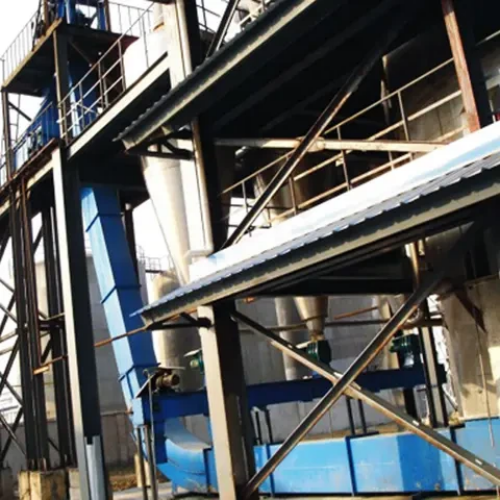

In the world of bulk material handling, efficient transportation of materials is crucial for productivity, safety, and cost efficiency. One of the most versatile and reliable solutions available is the scraper conveyor. Scraper conveyors are widely used in industries such as mining, cement production, power plants, and chemical manufacturing. They provide a robust and economical method to move a wide variety of materials, including coal, ore, ash, cement, and other granular or powdered substances.
A scraper conveyor stands out due to its ability to transport heavy, abrasive, and high-temperature materials over long distances while maintaining operational stability and minimizing maintenance requirements. In addition to moving materials, scraper conveyors help maintain a clean production environment by reducing spillage and dust generation. This comprehensive guide will explore what scraper conveyors are, how they work, their types, applications, advantages, and tips on selecting and maintaining them effectively, providing a complete understanding for engineers, operators, and industry professionals.
A scraper conveyor is a type of mechanical conveyor system specifically designed to transport bulk materials along a trough using scraper chains attached to blades. Unlike belt conveyors or screw conveyors, which rely on carrying or pushing materials differently, scraper conveyors operate through a scraping motion that pushes material forward while maintaining contact with the trough surface. This ensures minimal material loss and consistent flow rates, especially for materials that are sticky, hot, or abrasive.
Feature | Scraper Conveyor | Belt Conveyor | Screw Conveyor |
Material movement | Scraped by chain blades | Carried on a continuous belt | Pushed by rotating screw |
Material type | Sticky, abrasive, hot, heavy | Light to medium bulk | Granular or powdered |
Distance capability | Long-distance | Medium-distance | Short to medium |
Maintenance | Low to moderate | Moderate | Moderate to high |
Temperature tolerance | High | Limited | Moderate |
Dust generation | Low | Moderate | Moderate |
Material spillage | Minimal | Possible | Moderate |
Scraper conveyors are often preferred in heavy-duty, high-temperature, or high-capacity applications where other conveyor types may fail or require frequent repairs. Their design allows for precise control of material flow, reducing the risk of jamming or overflow.
The working principle of a scraper conveyor is both simple and highly efficient. A scraper chain, looped around sprockets located at each end of the conveyor, moves scraper blades along the trough. These blades physically push the material forward, “scraping” it along the conveyor path.
Key steps in operation include:
Material Loading – Bulk material enters the trough at the feed point, either by gravity or from a secondary feeder. Proper loading ensures uniform distribution and prevents overloading.
Scraping Action – Scraper blades continuously push the material along the trough. The chain ensures consistent motion, while the blades maintain contact with the material, preventing backflow or clumping.
Material Discharge – At the discharge end, the material is released into a chute, bin, or secondary conveyor. The smooth scraping motion ensures minimal segregation of particles and consistent material flow.
Scraper conveyors can operate in different modes depending on the application:
Continuous Scraping: The blades move continuously along the trough, maintaining a steady material flow. This mode is ideal for consistent, high-capacity operations.
Intermittent Scraping: Blades move in intervals or controlled cycles, which helps prevent clogging when handling sticky, oversized, or highly abrasive materials. Intermittent motion can also reduce wear on the chain and blades.
By controlling the speed and type of motion, operators can optimize the conveyor for efficiency and material integrity.
Scraper conveyors are classified based on chain configuration, trough shape, and installation angle, which determines their suitability for various materials and environments.
Type | Description | Typical Application |
Single-chain | One scraper chain runs along the trough | Light to medium materials; compact layouts |
Double-chain | Two chains operate in parallel | Heavy materials, high-capacity systems; long-distance transport |
Double-chain systems are preferred for high-capacity applications because they distribute the load more evenly and provide greater mechanical strength. Single-chain conveyors, on the other hand, are cost-effective solutions for lighter materials or shorter transport distances.
Horizontal Scraper Conveyors: Designed for transporting materials across flat distances. These conveyors are ideal for redistributing materials within production facilities or linking multiple processing units.
Inclined Scraper Conveyors: Designed to transport materials upward at angles typically ranging from 15° to 35°. They are useful when material needs to be elevated between production stages.
U-Trough Scraper Conveyors: Feature a U-shaped trough to contain large volumes of material, ensuring efficient handling without spillage. The U-shape also improves material distribution and reduces friction on the scraper blades.
Each type has its advantages depending on the plant layout, material characteristics, and operational requirements.
Understanding the key components helps in selecting, operating, and maintaining scraper conveyors effectively.
Scraper blades are the core elements in material handling. They directly contact the material, pushing it along the trough. Chains can be single-pitch or double-pitch, influencing the load capacity and flexibility of the conveyor. High-strength alloy steel chains are commonly used in abrasive or heavy-duty applications, ensuring longevity and reducing maintenance frequency.
The drive system includes a motor, gearbox, and sprockets, determining the conveyor’s speed and torque. Motors can be electric or hydraulic, depending on the installation requirements. Proper power selection ensures smooth operation, even with variable loads.
The trough contains the material and guides it along the conveyor path. Troughs are typically made from steel or stainless steel to resist wear, corrosion, and high temperatures. The support structure stabilizes the conveyor, reduces vibration, and absorbs operational stresses, prolonging the lifespan of the conveyor system.
Chain tensioning systems prevent slack and maintain consistent operation. Safety devices, such as emergency stops, overload protection, and protective covers, are essential to prevent accidents and maintain operational safety. Regular inspection of these components is crucial for reliable performance.
Scraper conveyors provide multiple operational and technical advantages compared to other bulk material handling systems:
High Efficiency – Capable of moving large volumes of heavy and abrasive materials efficiently.
Low Maintenance Requirements – Limited exposed moving parts reduce downtime and repair costs.
Durable and Reliable – Can operate under harsh environmental conditions, including dust, heat, and abrasive materials.
Material Integrity – The gentle scraping motion minimizes material degradation, reducing fines and dust.
Versatility – Able to handle sticky, hot, or abrasive materials without clogging or excessive wear.
Energy Efficiency – Scraper conveyors can operate at lower energy consumption compared to other heavy-duty conveyors due to their mechanical simplicity.
Scraper conveyors are extensively used for transporting coal, ores, and other mineral materials. They efficiently handle abrasive and heavy loads while minimizing dust and material loss.
In cement plants, scraper conveyors transport raw materials, clinker, and finished cement between production stages. Their ability to operate in high-temperature environments is essential in kiln and preheater areas.
Scraper conveyors handle powders, granules, and intermediate products safely and efficiently. Corrosion-resistant materials and coatings can be applied to accommodate specific chemical properties.
They are used for ash handling and transportation from boilers to storage or disposal systems. Scraper conveyors efficiently manage high-temperature ash, reducing maintenance needs.
Scraper conveyors also find applications in metallurgy, food production, and construction material processing. Their adaptability allows them to meet unique production requirements, including varying particle sizes, moisture content, and temperatures.
Selecting the correct scraper conveyor involves evaluating multiple operational and material factors:
Material properties such as moisture content, abrasiveness, temperature, and particle size significantly influence the conveyor design. Sticky or wet materials require more frequent cleaning and proper blade selection.
Long-distance material transport may require a double-chain system to ensure stability and mechanical strength. Conveyor speed and chain dimensions should match the required throughput.
Horizontal or inclined conveyor selection depends on available space, elevation changes, and integration with existing processing equipment. Adequate space is required for maintenance access.
Manufacturers can customize blade shape, chain type, trough material, and drive power. Optional features include dust covers, heating jackets, or corrosion-resistant coatings, depending on material properties.
Factor | Recommendation |
Material Type | Select blade and chain material based on abrasiveness, moisture, and temperature |
Capacity | Determine conveyor speed and chain size according to material volume per hour |
Layout | Horizontal or inclined based on plant layout and available space |
Maintenance | Ensure accessibility for lubrication, inspection, and blade replacement |
Proper maintenance is key to reliable performance and extended lifespan:
Lubrication – Regularly lubricate chains, bearings, and sprockets to reduce friction and wear.
Blade Inspection – Inspect scraper blades for wear or damage; replace as needed to maintain consistent material flow.
Chain Tension Adjustment – Maintain correct tension to prevent slippage, excessive wear, or chain breakage.
Cleaning – Remove material buildup in troughs to prevent clogging and maintain efficiency.
Safety Checks – Test emergency stops, overload protection, and guards regularly to ensure safe operation.
Environmental Considerations – Keep conveyor area clean and free from corrosive or abrasive contaminants that may accelerate wear.
A scraper conveyor is an indispensable component in modern bulk material handling. Its ability to transport heavy, abrasive, and high-temperature materials efficiently makes it a preferred choice for industries such as mining, cement, chemical, and power generation. By understanding its types, working principles, components, applications, and maintenance requirements, operators can optimize productivity while minimizing operational downtime.
Manufacturers like Henan Pingyuan Mining Machinery Co., Ltd. offer a wide range of customizable scraper conveyors that meet specific industrial needs. Investing in the right scraper conveyor enhances operational efficiency, ensures reliable material flow, and reduces long-term maintenance costs.
Q1: What materials can be transported using a scraper conveyor?
A: Scraper conveyors can handle coal, ores, cement, ash, powders, granules, and other heavy or abrasive materials.
Q2: Can scraper conveyors operate in high-temperature environments?
A: Yes, they are designed to transport hot materials and can be customized with heat-resistant components.
Q3: How is a scraper conveyor different from a belt conveyor?
A: Unlike belt conveyors, scraper conveyors push materials with blades along a trough, reducing spillage and handling heavier or sticky materials.
Q4: How often should a scraper conveyor be maintained?
A: Routine inspection, lubrication, and blade replacement should be performed at regular intervals, typically every few weeks depending on material and usage.
Q5: Can scraper conveyors be customized for specific industries or materials?
A: Yes, manufacturers can customize chain type, blade design, trough material, and drive systems to suit industry-specific requirements.
