Views: 0 Author: Site Editor Publish Time: 2026-07-21 Origin: Site
A screw conveyor is a bulk material handling machine. It moves powders, granules, pellets, cement, grain, feed, and small lump materials through a rotating helical screw.
It is also called an auger conveyor. The working idea looks simple. A motor rotates a screw shaft. The screw flight pushes material forward inside a trough or tube. Material enters from the feed inlet and leaves from the discharge outlet.
Still, proper operation depends on many details. Motor power, screw pitch, trough shape, bearing support, material flow, filling rate, and conveyor angle all affect performance.
PK Machinery manufactures bulk material handling equipment, including vibrating screen, vibrating feeder, belt conveyor, bucket elevator, screw conveyor, scraper chain conveyor, and related spare parts. Its screw conveyor category includes pipe screw conveyor, U-type screw conveyor, and cement screw conveyor.
This Screw Conveyor Operation Guide explains how screw conveyors work, what parts they use, what affects capacity, and how buyers can avoid common problems.
Note: A screw conveyor is simple in structure, but correct design still depends on material data and plant layout.
The process starts at the feed inlet. Material enters the trough or tubular casing from a hopper, silo, mixer, crusher, or upstream conveyor.
Common materials include:
Powder
Granules
Pellets
Cement
Grain
Feed
Sand
Ash
Small lump materials
Controlled feeding is important. If too much material enters at once, the screw conveyor may overload. It may also clog near the inlet.
For stable Screw Conveyor Material Flow, the feed rate should match the screw speed, trough loading, and discharge capacity.
The electric motor provides power. It usually works with a reducer, coupling, or drive assembly. This system turns the screw shaft at the required speed.
Speed affects capacity, power demand, wear, and material stability. Higher speed may move more material. It can also create more dust, more wear, or more material breakage.
A good drive design should match the material density, conveyor length, inclination angle, and starting load.

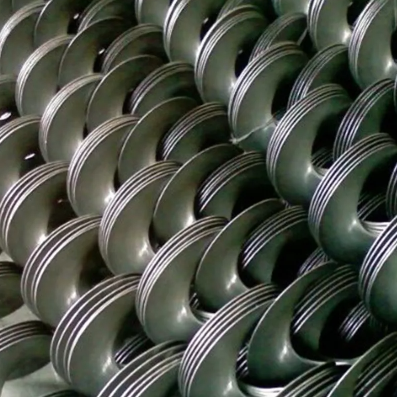

The screw flight is the main working part. It is also called conveyor flighting, screw blade, or auger blade.
When the shaft rotates, the helical flight pushes material forward. The material moves along the trough or tube from the inlet to the outlet.
The Screw Conveyor Working Principle depends on two forces. First, the rotating blade creates forward axial thrust. Second, friction between the material and trough helps stop the material from simply spinning with the screw. The reference material describes this process as rotating spiral blades pushing material along the trough or pipeline.
The trough or tube forms the conveying channel. It keeps material inside the system.
A U-shaped trough is easier to open and inspect. It is useful when maintenance access matters.
A tubular casing gives better enclosure. It helps control dust, spillage, weather exposure, and contamination.
PK Machinery offers both U-type screw conveyor and pipe screw conveyor options for different industrial applications.
Bearings support the rotating screw shaft. End bearings support both ends. Hanger bearings may support longer conveyors.
Stable bearing support helps reduce:
Vibration
Shaft deflection
Mechanical wear
Power loss
Unstable conveying
Poor bearing condition can cause overheating, noise, misalignment, and downtime.
After the screw flight pushes material forward, it reaches the discharge outlet. The material then falls into the next process point.
The outlet can be placed according to the plant layout. Some systems may use multiple discharge points for distribution.
The full working cycle is continuous:
Material enters through the inlet.
The motor rotates the screw shaft.
Conveyor flighting pushes material forward.
The trough or tube contains the flow.
Bearings support smooth rotation.
Material exits through the outlet.
As long as the motor runs and feeding stays stable, the screw conveyor can provide continuous material handling.
Tip: Control the feed rate first when diagnosing unstable screw conveyor operation.
Understanding Screw Conveyor Components and Function helps buyers select, operate, and maintain the equipment.
Component | Main Function | Why It Matters |
|---|---|---|
Drive motor | Supplies power | Controls operating speed |
Gear reducer | Adjusts speed and torque | Supports stable rotation |
Screw flight | Pushes material forward | Determines material movement |
Shaft | Carries the screw flight | Transfers torque |
Trough or tube | Contains material | Controls dust and spillage |
Feed inlet | Receives material | Affects loading stability |
Discharge outlet | Releases material | Affects downstream flow |
Bearings | Support rotation | Reduce vibration and wear |
Seals | Limit leakage and dust | Protect bearings and drive parts |
The drive system controls torque and speed. Motor sizing depends on several factors:
Material bulk density
Conveyor length
Conveyor angle
Required capacity
Starting load
Duty cycle
Material resistance
Dense or sticky material needs more power than free-flowing grain.
The screw flight determines how material moves. Its diameter, pitch, thickness, and shape affect capacity and flow behavior.
Abrasive materials may need thicker or wear-resistant flighting. Sticky materials may need special flight designs.
Standard flighting works well for many powders and granules. Special designs may be better for poor-flowing materials.
The enclosure affects safety, dust control, inspection, and cleaning.
A U-type trough offers easier access. It is suitable for general powder or granular conveying.
A tubular casing provides better sealing. It is often used for dusty materials, cement powder, outdoor use, and enclosed conveying.
Small supporting parts often decide long-term reliability.
Poor inlet design may cause buildup. Poor outlet design may cause backup. Worn seals can allow dust to enter bearings. Misaligned bearings can create vibration.
Note: Many screw conveyor failures begin at feeding, bearing, or sealing points.
A screw conveyor does not move material by rotation alone. It relies on axial thrust, friction, material weight, and controlled confinement.
The rotating flight creates forward force along the conveyor axis. This force pushes material toward the discharge end.
Pitch and speed affect movement per revolution. A larger pitch can move more material, but it may not suit every material.
The material should not rotate as one mass with the screw. Friction between the material and trough helps resist spinning.
This resistance helps convert screw rotation into forward movement.
Material properties matter here. Dry grain, cement powder, wet sludge, and sand behave differently inside the conveyor.
Material weight helps keep the bulk material near the bottom of the trough.
This is why horizontal screw conveyors are usually easier to operate. The material stays settled and moves forward more predictably.
Inclined conveying is more difficult. Gravity pulls material backward. This reduces real capacity and increases power demand.
For Inclined Screw Conveyor Working, designers may adjust screw pitch, speed, tube style, and motor power. Capacity should always be confirmed for the actual angle.
The reference material notes that actual capacity depends on material flowability, filling coefficient, and inclination coefficient.
Tip: Do not use horizontal capacity data for an inclined screw conveyor without correction.
Different configurations use the same basic Auger Conveyor Working Principle. However, each structure fits different plant needs.
A horizontal screw conveyor is the most common type.
It is suitable for:
Short to medium-distance conveying
Powders and granules
Controlled discharge
General industrial layouts
Stable bulk material flow
It is often easier to install and maintain than steep inclined systems.
An inclined screw conveyor moves material upward at an angle.
It saves floor space. It can connect equipment at different heights.
However, it may have lower capacity. It may also need more power. Material rollback can occur when angle, speed, or screw design is wrong.
A tubular screw conveyor uses a closed pipe casing.
It is suitable for:
Dusty materials
Outdoor installations
Cement powder
Fly ash
Mineral powder
Better containment
It is useful when spillage control and dust control matter.
A U-type screw conveyor uses a U-shaped trough and cover.
It is suitable for:
Easy inspection
General powder conveying
Maintenance-friendly layouts
Applications where cleaning access matters
It is often selected when operators need regular access to the screw and trough.
Note: The right structure depends on material behavior, not only plant space.
Screw conveyor capacity is not fixed by diameter alone. It changes with material, structure, speed, filling rate, and layout.
Larger screw diameter usually increases capacity. Suitable pitch also improves conveying performance.
Higher speed can raise throughput. It may also increase dust, wear, heat, noise, or material breakage.
A practical capacity estimate should consider diameter, pitch, speed, filling factor, bulk density, and inclination.
Free-flowing materials move more easily than sticky or abrasive materials.
Examples include:
Cement powder
Grain
Sand
Sludge
Feed pellets
Chemical powder
Ash
Fertilizer
Dense materials need more torque. Sticky materials may need special screw designs. Abrasive materials may require wear-resistant steel.
The trough should not be completely filled during normal operation.
Higher loading may increase capacity, but it can also increase blockage and wear.
The reference material lists filling factor as an important capacity parameter. It also gives lower filling values for abrasive materials and higher values for free-flowing materials.
Horizontal systems usually achieve better capacity.
As the conveyor angle increases, real throughput tends to decrease. The system may also need more motor power.
For long, inclined, or difficult applications, buyers should confirm capacity with the manufacturer.
Tip: Provide material density, moisture, angle, and required output before asking for a final model.
Many problems connect directly to material flow, screw wear, bearing condition, and feeding stability.
Common causes include:
Overfeeding
Sticky materials
Poor inlet design
Incorrect screw pitch
Material buildup around bearings
Too much trough loading
Practical solutions include:
Control the feed rate
Use proper screw design
Add clean-out access
Improve discharge flow
Consider shaftless design for sticky material
Reduced throughput may come from worn flights, low speed, excessive clearance, poor flowability, or incorrect inclination.
When the flight wears down, it loses pushing efficiency. Material may slip or build up inside the trough.
For abrasive materials, inspect the flight edge regularly.
Vibration may indicate shaft misalignment, bent screw shaft, worn bearings, uneven loading, or loose supports.
It should not be ignored. Vibration can damage bearings, seals, couplings, and the trough.
Bearings can overheat when abrasive dust enters the bearing area. Poor lubrication and misalignment also increase friction.
Regular inspection is important because bearings support smooth screw rotation.
The reference material lists material blockage, hanger bearing overheating, reduced throughput, and excessive vibration as common screw conveyor troubleshooting issues.
Problem | Likely Cause | Practical Check |
|---|---|---|
Blockage | Overfeeding or sticky material | Check inlet and feed rate |
Low capacity | Worn flight or low speed | Inspect flight clearance |
Vibration | Misalignment or uneven loading | Check shaft and supports |
Bearing heat | Dust ingress or poor lubrication | Inspect seals and grease |
Dust leakage | Poor sealing | Check covers and gaskets |
Tip: Stop the conveyor before inspection. Lockout procedures should follow site safety rules.
Good selection starts with the working principle. The system must match the material, layout, capacity, and process duty.
Check these material properties first:
Bulk density
Particle size
Moisture level
Abrasiveness
Stickiness
Temperature
Corrosiveness
Flowability
A Bulk Material Screw Conveyor for cement may need different construction than one for grain or feed pellets.
Choose the structure according to the job:
Structure | Best Use |
|---|---|
U-type screw conveyor | Easy inspection and maintenance |
Pipe screw conveyor | Enclosed conveying and dust control |
Cement screw conveyor | Cement and powder transfer |
Shaftless screw conveyor | Sticky or sludge-like materials |
Screw feeder | Controlled feeding from hoppers |
PK Machinery’s product category includes pipe screw conveyor, U-type screw conveyor, and cement screw conveyor. Its industrial screw conveyor pages also mention powdery, granular, and small block materials such as cement, pulverized coal, grain, fertilizer, ash, sand, and coke.
Before final selection, confirm:
Required throughput
Conveying distance
Inlet position
Outlet position
Installation angle
Motor power
Duty cycle
Dust-control requirement
Maintenance access
These details help the manufacturer check screw size, pitch, speed, reducer, and power.
Screw conveyor selection is not only about diameter and length.
Buyers should provide material data, layout drawings, capacity requirements, and working conditions. This helps avoid poor flow, high wear, weak capacity, and future downtime.
PK Machinery describes itself as a bulk material handling equipment manufacturer with more than 50 years of development in screening and conveying equipment.
Note: Mark capacity examples as “needs verification” until material testing confirms real flow behavior.
So, how does a screw conveyor work?
A screw conveyor works by using a motor-driven rotating screw flight to push bulk material through a trough or tube. Material enters through the feed inlet, moves forward under axial thrust, stays contained by the casing, and exits through the discharge outlet.
The main working factors include:
Motor power
Screw flight design
Trough or tube structure
Material friction
Axial thrust
Flowability
Filling rate
Bearing support
Conveyor angle
Understanding the Screw Conveyor Working Principle helps buyers choose the right conveyor type. It also helps them avoid blockage, reduce wear, improve material handling, and maintain stable conveying efficiency.
For cement, grain, feed, chemical powder, ash, sand, or other bulk materials, buyers should share material characteristics, capacity needs, conveying distance, and installation layout with PK Machinery. This allows the engineering team to recommend a suitable screw conveyor solution.
A properly selected screw conveyor is not just a simple transfer machine. It is a key part of a stable, efficient bulk material handling line.
For bulk material handling projects, PK Machinery offers screw conveyors and other conveying equipment tailored to specific material characteristics and plant layouts. Buyers should provide material properties, capacity targets, conveying distance, inlet and outlet positions, and installation conditions to receive a suitable recommendation.
Explore PK Machinery's screw conveyor solutions.
A: A screw conveyor uses rotating conveyor flighting to push bulk material from the inlet to the discharge outlet.
A: The screw conveyor working principle depends on motor rotation, axial thrust, trough friction, and controlled material flow.
A: Main parts include the motor, screw flight, shaft, trough, inlet, outlet, bearings, and seals.
A: Screw conveyor material flow affects capacity, blockage risk, wear, power demand, and discharge stability.
A: An inclined screw conveyor lifts material upward, but capacity drops as the angle increases.
A: An auger conveyor and screw conveyor usually refer to the same material handling equipment.
A: Cost depends on size, length, material, capacity, motor power, casing type, and customization.
A: Check bearings, seals, screw flight wear, feed rate, alignment, and material buildup regularly.
